Optoma UHZ36STE 4K UHD Short Throw Laser Golf Simulator Projector (4,000 Lumens)
£1,999.00 inc. VAT
Engineered for Space-Saving Golf Simulation
The Optoma UHZ36STE 4K Short Throw Laser Projector is the ultimate solution for compact indoor golf simulator bays. Combining 4,000 lumens of brightness with a dedicated 0.496:1 short-throw lens, it allows you to fill a massive impact screen from less than two metres away. This keeps the projector safely out of your swing path and prevents you from casting shadows onto the virtual fairway.
Advanced Hardware Performance
- Dedicated Golf Sim Picture Mode: Pre-calibrated to deliver true-to-life greens and blues, ensuring your virtual courses look vibrant even with overhead tracking lights turned on.
- Responsive 4K Gaming Speed: Supports 4K at 60Hz and 1080p at 240Hz with an input lag as low as 4.4ms, ensuring real-time ball flight rendering from TrackMan, GSPro, and FSX Play.
- DuraCore Laser Engine: An IP6X-certified sealed optical assembly provides up to 30,000 hours of consistent, maintenance-free illumination without the need for expensive lamp replacements.
- Flexible Geometry Adjustment: Features vertical and horizontal keystone correction (±15°) to help you achieve a perfectly square image on your impact screen, even if ceiling placement is slightly off-axis.
Click Here to try out the Optoma Projector Distance Calculator, to ensure this projector is the right fit for you !
Technical Specifications
| Resolution | 4K UHD (3840 x 2160) |
| Brightness | 4,000 ANSI Lumens |
| Contrast Ratio | 500,000:1 |
| Throw Ratio | 0.496:1 (Fixed Short Throw) |
| Light Source Life | Up to 30,000 Hours (DuraCore Laser) |
| Keystone Correction | ±15° Vertical & Horizontal |

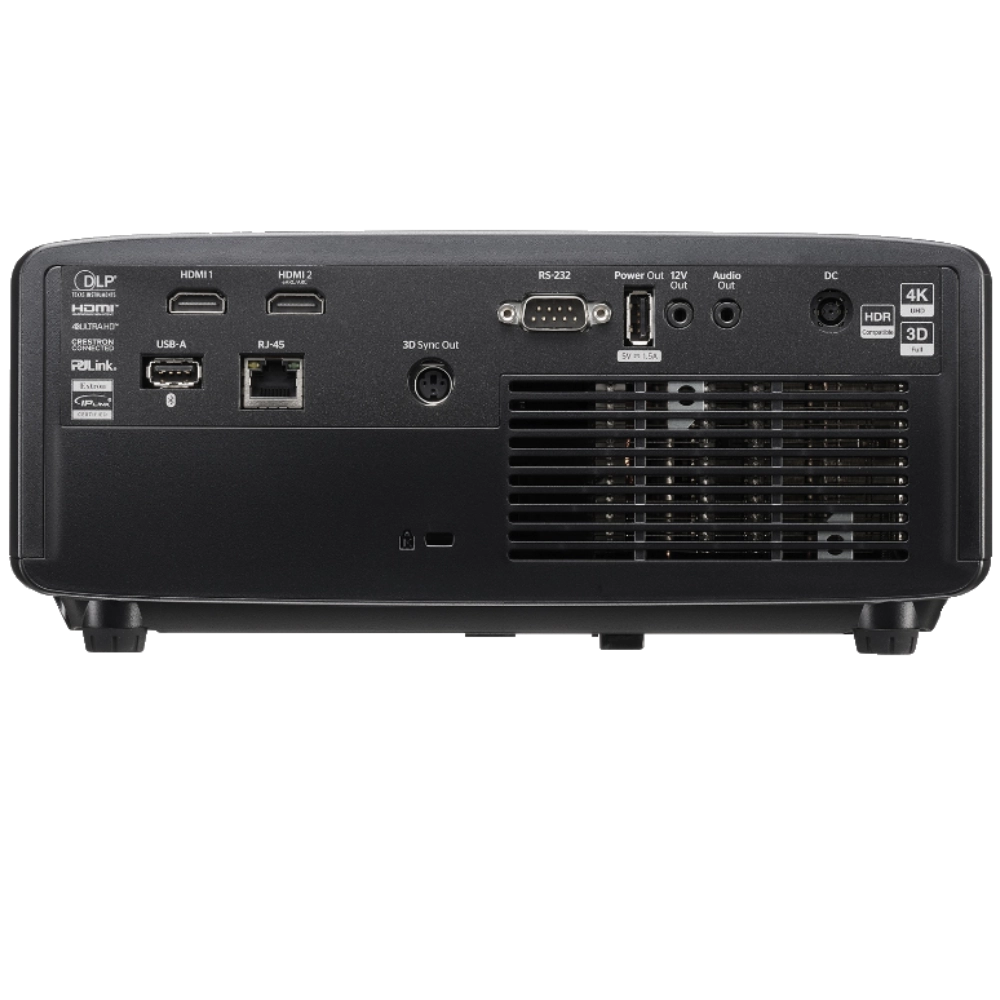

| Inputs | 2 x HDMI 2.0 (1x eARC), 1 x RJ45, 1 x RS232 |
| Outputs | 1 x Audio 3.5mm, 2 x USB-A Power (1.5A), 1 x 3D Sync, 1 x 12v Trigger |
| Dimensions & Weight | 274 x 216 x 114 mm / 2.9 kg |
Frequently Asked Questions — Optoma UHZ36STe Golf Sim Setup
What size room or mounting distance do I need for the Optoma UHZ36STe?
Thanks to its fixed ultra-short-throw lens (0.496:1 throw ratio), the UHZ36STe mounts exceptionally close to your screen. For a standard 10ft wide screen (16:9), the lens sits roughly 1.5m (4.9ft) away. This positions the projector safely ahead of the golfer’s swing zone and completely eliminates body shadows on the impact screen, making it ideal for compact garages and tight simulator bays.
Can I use the Optoma UHZ36STe with ambient room lighting turned on?
Yes. The UHZ36STe delivers 4,000 ANSI Lumens of laser brightness combined with a 500,000:1 dynamic contrast ratio. This provides plenty of punch to run ambient garage lighting or overhead spotlighting for launch monitors (like Trackman iO or Foresight) without washing out course greens and fairway textures.
Does the Optoma UHZ36STe support 4K resolution on golf simulator software like GSPro and Trackman?
Yes. The projector renders true 4K UHD resolution (3840 x 2160 with 8.3 million pixels) via dual HDMI 2.0 ports. It fully supports high-fidelity 4K rendering in GSPro, Trackman Performance Studio, E6 Connect, and FSX Play for ultra-sharp course clarity and defined putting grid lines.
How low is the input lag for real-time ball flight tracking?
With Enhanced Gaming Mode enabled, the UHZ36STe offers an ultra-low input lag down to 4.4ms (at 1080p/240Hz) and 16.9ms (at 4K/60Hz). This guarantees immediate, real-time visual feedback the instant ball leaves clubface with zero perceived delay on your simulator software.
Is the Optoma UHZ36STe dustproof for garage and outbuilding installations?
Yes. It is engineered with an IP6X-certified airtight DuraCore laser optical engine. The optical engine is completely sealed against dust, chalk, and screen fiber ingress, ensuring reliable, filter-free performance for up to 30,000 hours in unconditioned environments.
What comes in the Golf Sim Solutions Optoma UHZ36STe bundle?
Every Optoma UHZ36STe order from Golf Sim Solutions includes the brand-new projector unit, remote control with batteries, UK AC power cable, quick start documentation, full manufacturer warranty, and free UK courier delivery.
Key Features
- Native 4K UHD Clarity: 8.3 million distinct pixels for pinpoint shot analysis, clean data boxes, and ultra-sharp fairway textures.
- Dedicated Golf Sim Mode: Factory-calibrated colour profile designed specifically for golf simulation graphics.
- 0.50:1 Short-Throw Optics: Mounts ahead of the tee position to completely eliminate swing-path shadow interference.
- 4,000 ANSI Lumens DuraCore Laser: High brightness capable of overcoming ambient lighting with up to 30,000 hours of lamp-free operation.
- Ultra-Low Input Lag: Down to ~4.4ms (1080p 240Hz) and ~16.7ms (4K 60Hz) for instantaneous shot rendering upon impact.
- Full Geometry Correction: 4-corner adjustment plus ±30° horizontal and vertical keystone for exact alignment to custom enclosures.
- Compact & Eco-Friendly Design: Constructed with up to 50% PCR recycled materials and up to 45% reduced power consumption compared to lamp-based models.
Technical Specifications
| Display Technology | Texas Instruments DLP™ 4K UHD |
| Native Resolution | 4K UHD (3840 × 2160) |
| Brightness | 4,000 ANSI Lumens |
| Contrast Ratio | 500,000:1 (Dynamic Black Enabled) |
| Light Source & Lifespan | DuraCore Laser – Up to 30,000 hours (Eco) / 20,000 hours (Bright) |
| Throw Ratio | 0.50:1 (Fixed Focal Lens) |
| Picture Preset Modes | Golf SIM, Cinema, Vivid, Bright, HDR, HLG, Game, 3D, ISF Day/Night |
| Aspect Ratio Support | 16:9 Native (Compatible with 16:10, 4:3, and custom scaling) |
| Geometry & Keystone | Vertical ±30°, Horizontal ±30°, 4-Corner Geometric Correction |
| Input Latency | ~4.4ms @ 1080p 240Hz / ~16.7ms @ 4K 60Hz (Enhanced Gaming Mode) |
| Inputs / Outputs | 2× HDMI 2.0 (HDCP 2.2, eARC), 1× Audio Out 3.5mm, 2× USB-A Power, 1× RJ45, 1× RS232 |
| Dimensions & Weight | 274 × 216 × 114 mm | 2.9 kg |
What’s in the Box
- Optoma UHZ36STE 4K Laser Projector
- Backlit Remote Control (with AAA batteries)
- UK Power Cord
- Basic User Manual & Setup Documentation
